Product specifications
222A-01001

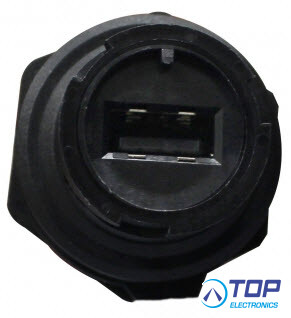

USB 2.0 A Type, Straight PCB Type, Receptacle Waterproof, GF
The sealed I/O connector enables use under the rugged environmental conditions, Through the potting of electronics in a compact plastic or metal housing with sealed connectors. Our sealed I/O series reaching the protection class IP67, to ensure your digital information, voltages power can be safely continued transmission under a harsh environment.
SPECIFICATION:
1. CURRENT RATING: 1A
2. VOLTAGE RATING: 30V
3. WATER PROOF: IP67
4. Operation temperature -20C to +85C
5. Durability: 1,500 cycles
6. Insertion Force: 35N Max.
7. Extraction Force: 10N Min.
