Product specifications
57736

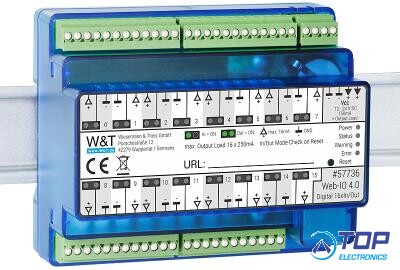

Web-IO 4.0 Digital 16xIn/Out
Switch, monitor and count ...
With the Web-IO 4.0 Digital switching signals can be controlled, detected and monitored over TCP/IP-Ethernet. The 16 channels can be used as input or output. Numerous Web and network services are available for reporting changes on the inputs and outputs - including directly in the browser. Using protocols such as OPC UA, MQTT and REST the Web-IO is an ideal fit in the world of Industry 4.0 and the Internet of Things.
Switching signals:
16 channels:
- Can be used optionally as inputs or outputs
- 24V technology
- Switching currents up to 250mA
- 32-bit pulse counter
Connectivity:
Intuitive Web interface for simpler operation
- Select between German or English
- Switching the outputs directly from the Web interface
- Adaptation for smartphone
- HTTP and HTTPS
Current Industry 4.0 protocols:
- OPC UA, REST and MQTT support
- AMQP on request
Box-to-Box
- Pass switching signals over the network 1:1
Actions / alarm and reporting functions:
- Email for alarm sending or as status report
- SNMP polling / alarm traps V1 V2 V3
- Switching your outputs in alarm situations
- Switching the outputs on another Web-IO
- HTTP requests for controlling third-party devices
- Up to 30 actions can be configured
Dynamic integration into other Web sites:
- Direct access to current states via HTTP requests, AJAX and JavaScript
Additional software interfaces for incorporating into your systems/databases:
- OPC UA, OPC DA
- REST
- Modbus TCP
- Syslog, SNMP V1 V2 V3
- TCP and UDP sockets, client and server
- HTTP, HTTPS, AJAX
- FTP (data logging)
Internal clock
- Time synchronization via time server calibration
- Battery-backed device clock
Possible applications:
- Remote monitoring and fault messaging
- Cross-location switching
- House and building automation
- Process monitoring and visualization
- Light, gate and cabinet control
- Machine Data Collection (MDC)
Power supply:
External power
- Screw terminal
- 12 - 24V DC
Standards & more:
Conforms to standards both in office and industrial environments:
- High noise resistance per EN 61000-6-2
- Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee
- Wiesemann & Theis product -
