Product specifications
WuT 57733

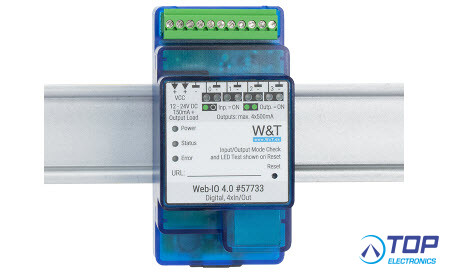

Web-IO 4.0 Digital 4x In/Out
Switch, monitor and count ...
With the Web-IO 4.0 Digital switching signals can be controlled, detected and monitored over TCP/IP-Ethernet. The 4 switching channels can be used as input or output. Numerous Web and network services are available for reporting changes on the inputs and outputs - including directly in the browser. Using protocols such as OPC UA, MQTT and REST the Web-IO is an ideal fit in the world of Industry 4.0 and the Internet of Things.Switching signals:
4 channels:
- Can be used optionally as inputs or outputs
- 24V technology
- Switching currents up to 500mA
- 32-bit pulse counter
Connectivity:
- Intuitive Web interface for simpler operation
- Select between German or English
- Switching the outputs directly from the Web interface
- Adaptation for smartphone
- HTTP and HTTPS
Current Industry 4.0 protocols:
- OPC UA, REST and MQTT support
- AMQP on request
Box-to-Box
- Pass switching signals over the network 1:1
Possible applications:
- Remote monitoring and fault messaging
- Cross-location switching
- House and building automation
- Process monitoring and visualization
- Light, gate and cabinet control
- Machine Data Collection (MDC)
- Wiesemann & Theis product -
