YC0009AA

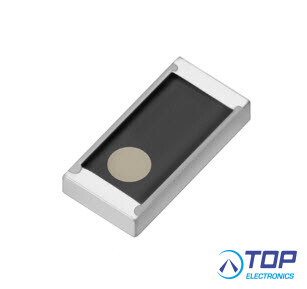

Wi-Fi/BT SMD Chip Antenna
A very small, highly efficient ISM embedded SMD ceramic antenna for Wi-Fi, BT, BT LE and Zigbee. By using the main device PCB as its ground plane, this antenna is extremely efficient despite its small size. Ideally mounted on the center edge of a ground-plane, it can be tuned for different PCB lengths and environments by changing the PI matching circuit values at the feed point. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Optimized for Wi-Fi & BT/BT LE
- Linear
- Ceramic
- SMD mount
Frequency band: 2400–2500MHz, 5000-6000MHz
Dimensions: 5.2mm (L) x 3.7mm (W) x 0.7mm (H)
Efficiency 83%
RoHS and REACH compliant
- Quectel Wireless Solutions product -
