Product specifications

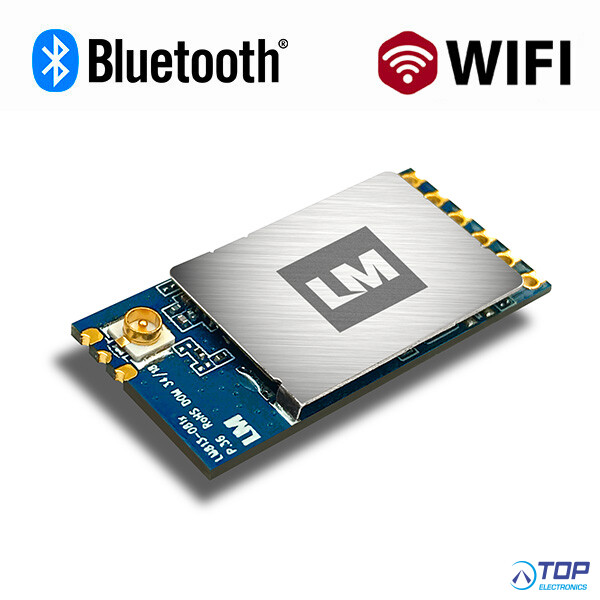

LM813 WiFi and Dual Mode Bluetooth® 4.2 Combi Module
Host Controller Interface (HCI) via USB Interface
OVERVIEW:
The LM813 Series Combination Module supports both WiFi 802.11ac with data rates up to 433Mbps and Bluetooth® 4.2.
USB Interface module with added terminals for enabling GPIO’s and Bluetooth Functions to enable coexistence.
This IPEX, module operates under 2.4GHz or 5Ghz. LM813 is compliant to IEEE 802.11ac/ a/b/g/n, and Bluetooth® v2.1, v3.0 and v4.2 standards.
Currently Bluetooth® includes EDR transmission and supports bandwidths up to 2Mbps, or in HS Mode up to 3Mbps.
The module design is based on a Realtek reference, which LM engineer's have made some modifications, which include; Upgrading the PCB material to -40°C rated components and using a high quality -40°C low temperature crystal. The main IC from Realtek is only rated at 0°C.
Our temperature testing is conducted up to -40°C and the module has achieved good results. Although the testing period is only subject to a 72h test period, we have run previous modules using the same brand of BOM material in longer periods of temperature testing. These tests are continuous and enable us to support for -20°C Operating and -30°C Storage Temperature under our own 24 month warranty, from date of dispatch. We have added a heat resistant coating to the bottom of the module enabling higher temperature protection during the re-flow processing in production.
FEATURES:
- 1T1R One IPEX Antenna Output
- 802.11ac MIMO solution for 5G band
- 433Mbps High Speed WLAN
- IEEE standards support: IEEE 802.11ac/a/b/g/n
- WPA/WPA2 certification for WiFi
- Bluetooth® 4.2 Dual Mode
- 5v or 3.3v Supply Options
- USB 2.0 and PCM interface
- Support for WiFi/Bluetooth® Coexistence, with both technologies active a slight drop in Wi-Fi throughput is noted.
- Bluetooth® adaptive power management mechanism
- Linux Support Kernel : 2.6.24 ~ 4.15.17, Supported for Windows 7, 8, 8.1 and 10
- CE / FCC Certified Solution
- SIG Certification & CCATS due shortly.
- RoHS, REACH and WEEE Compliant Solution
- LM Technologies product
AVAILABLE VERSIONS:
5V Module with IPEX Connector
LM813-0813 - ETSI - MOD SMT HCI 802.11ac 1T1R - BT4.2 -20c 5v IPEX - Tray
LM813-0815 - ETSI - MOD SMT HCI 802.11ac 1T1R - BT4.2 -20c 5v IPEX - T&R
LM813-0816 - US - MOD SMT HCI 802.11ac 1T1R - BT4.2 -20c 5v IPEX - Tray
LM813-0818 - US - MOD SMT HCI 802.11ac 1T1R - BT4.2 -20c 5v IPEX - T&R
PACKAGING:
- Single pack: 1 module
- Tray: 40 modules
- Tape & Reel: 1500 modules
