Product specifications

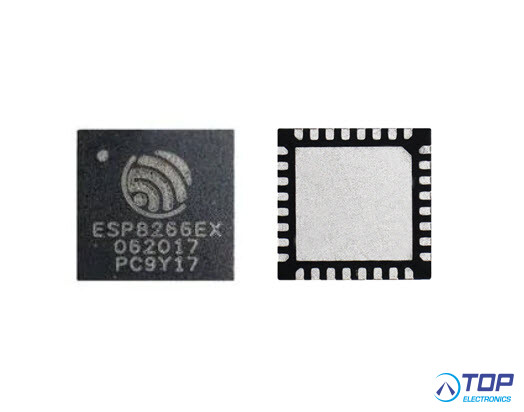

Wireless-Tag ESP8266EX
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained WiFi networking solution, allowing it to either host the application or to offload all WiFi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Features
> 802.11 b/g/n
> WiFi Direct (P2P), soft-AP
> Integrated TCP/IP protocol stack
> Integrated TR switch, balun, LNA, power amplifier and matching network
> Integrated PLLs, regulators, DCXO and power management units
> +19.5dBm output power in 802.11b mode
> Power down leakage current of <10uA
> Integrated low power 32-bit CPU could be used as application processor
> SDIO 1.1/2.0, SPI, UART
> STBC, 1×1 MIMO, 2×1 MIMO
> A-MPDU & A-MSDU aggregation & 0.4ms guard interval
> Wake up and transmit packets in < 2ms
> Standby power consumption of < 1.0mW (DTIM3)
Solutions
> Supports APSD for optimal VoIP applications
> Patented spurious noise cancellation algorithm for integration in SOC applications
> Supports Bluetooth co-existence interface
> Self-calibrated RF to ensure optimal performance under all operating conditions
> Zero factory tuning
> No external RF components
