Product specifications

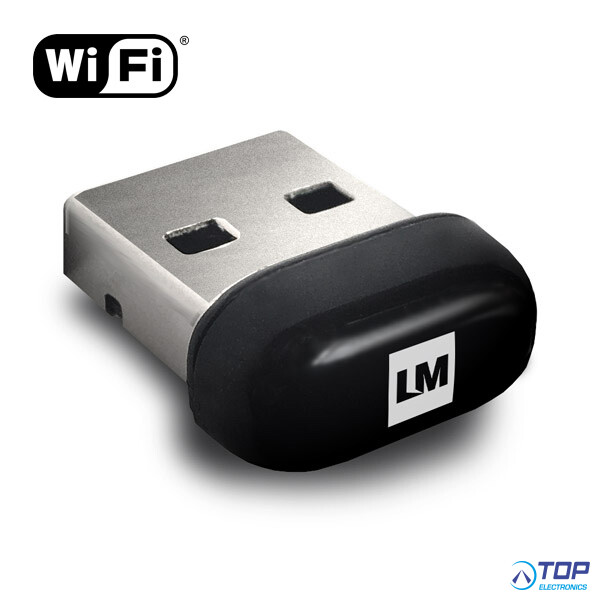

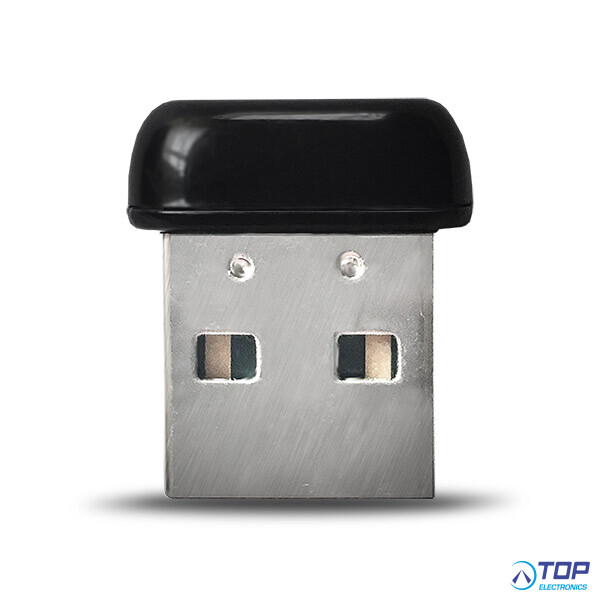

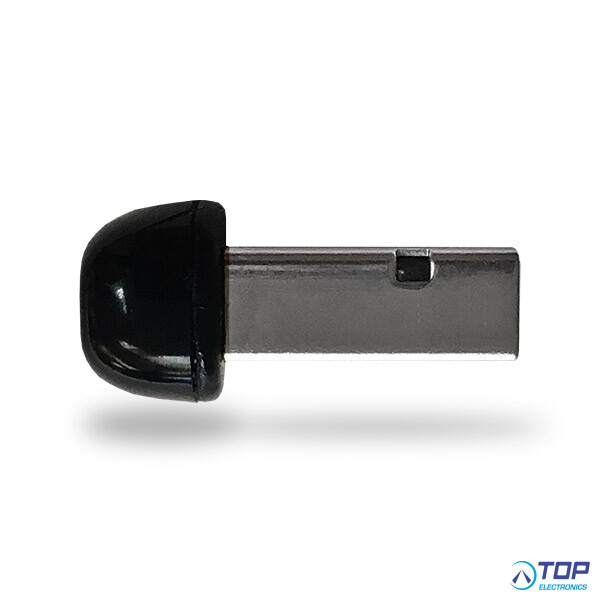

LM816 WiFi 802.11 b/g/n Nano Adapter (816-0648-2 - Retail Pack)
Host Controller Interface (HCI) via USB Interface
OVERVIEW
The LM816 WiFi adapter is fully compliant with IEEE 802.11 n, b and g standards. It supports a data transfer rate of up to 150Mbps in ad-hoc mode or infrastructure mode network architectures.
It is designed to provide excellent performance with low power consumption and enhance a robust system.
WiFi FEATURES
- WiFi 802.11 b/g/n
- Operates in 2.4 GHz frequency bands
- Plug and Play (Linux, macOS X, Windows XP – 10, Windows 10 IoT Core and Windows Compact Embedded 6/7 compatible)
- Fully-featured software utility for easy configuration and management
- 1x1 MIMO technology improves effective throughput and range over existing 802.11 b/g products
- Up to 150Mbps Data Transfer Rate
- BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes
- WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes
- Can be setup as an ad-hoc network for peer to peer communication

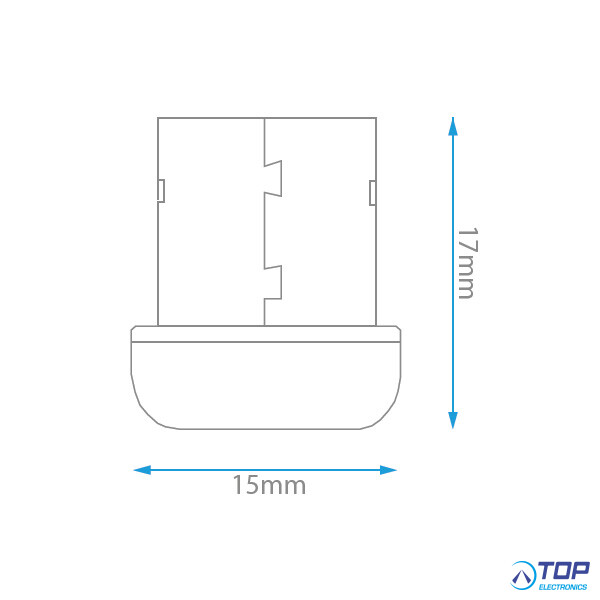

- Small convenient size
- RoHS, REACH and WEEE compliant
ORDERING OPTIONS
- 816-0648-2: ADPT 802.11n EUS 1T1R USB ETCH RP (Retail Pack)
- 816-0648-3: ADPT 802.11n EUS 1T1R USB ETCH AO (Adapter Only)
- LM Technologies product -
