Product specifications

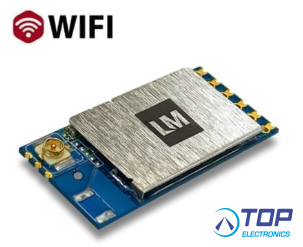

LM823 WiFi 802.11 b/g/n Module with IPEX Receptical
The LM823 WiFi USB module, fully supports IEEE 802.11 b, g and n standards.
It supports up to 150Mbps high-speed wireless network connections and is designed to provide excellent performance with low power consumption.
It is designed to be a highly cost-effective module that offers superior performance, better power management applications above its competitors
FEATURES:
- WiFi 802.11 b/g/n
- Operates in 2.4 GHz Frequency bands
- IPEX receptical
- Plug and Play (Linux, macOS X, Windows XP – 10, Windows 10 IoT Core and Windows Compact Embedded 6/7 compatible)
- Up to 150Mbps Data Transfer Rate
- 802.11e-compatible bursting and I standards
- BPSK, QPSK, 16 QAM and 64 QAM modulation schemes
- WEP, TKIP, and AES, WPA and WPA2 encryption schemes
- Fully-featured software utility for easy configuration and management
- RoHS, REACH and WEEE compliant
OPTIONAL FEATURES:
- DC power input 3.3V or 5V
- WPS on half-hole pin 6
- Support LED function when choose WPS option
ORDERING OPTIONS:
3 VOLT (ETSI or US)
LM823-1463-3: MOD SMT HCI 802.11n USB -20c EUS 3V IPEX PCS
LM823-1464-3: MOD SMT HCI 802.11n USB -20c EUS 3V IPEX TRAY (40pcs)
5 VOLT (ETSI or US)
LM823-1463: MOD SMT HCI 802.11n USB -20c EUS 5V IPEX PCS
LM823-1464: MOD SMT HCI 802.11n USB -20c EUS 5V IPEX TRAY (40pcs)
LM823-1466: MOD SMT HCI 802.11n USB -20c EUS 5V IPEX T&R (1500pcs)
- LM Technologies product -
