Product specifications
WT8266-S5

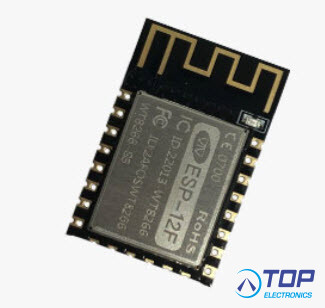

ESP-12F(WT8266-S5) WiFi module is an embedded wireless network control module with low power consumption and high cost performance developed by Qiming Cloud Technology. It can meet the needs of IoT applications such as smart grid, building automation, security, smart home, and telemedicine.
ESP-12F (WT8266-S5) WiFi module core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low power 32-bit micro MCU in a smaller package, with a 16-bit compact mode, and the main frequency supports 80 MHz and 160 MHz, support RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, onboard antenna.
The ESP-12F(WT8266-S5) WiFi module supports the standard IEEE802.11 b/g/n protocol and a complete TCP/IP protocol stack. Users can use this module to add networking functions to existing equipment, or build an independent network controller.
Feature
> Ultra small size
> Ultra-low energy consumption, suitable for battery-powered applications
> 2.4G onboard antenna
> Ultra-low energy consumption, suitable for battery-powered applications
>Stable radio frequency performance (strong anti-interference)
>Built-in TCP/IP protocol stack
>Built-in TR switch, balun, LNA, power amplifier and matching network
>Support AT remote upgrade and cloud OTA upgrade
>Support STA/AP/STA+AP working mode
Application
Smart grid
Building automation
Security
Telemedicine
Smart home
-- Wireless-Tag Technologies product --
