Product specifications

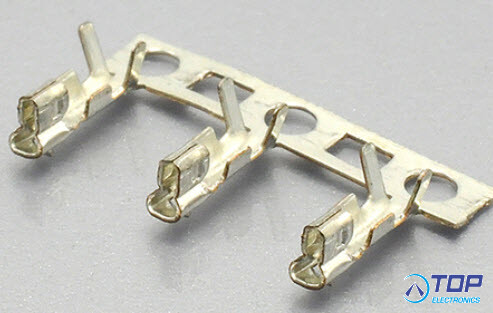

SWTB-T2001
Reel: 10K pcs
?SPECIFICATIONS:
?Current rating: 2A AC, DC
?Voltage rating: 100V AC,DC
?Temperature range: -25°C ~ +85°C
?Insulation resistance: 1000M O Min.
?Withstanding voltage: 800V AC/ minute.
?Contact resistance: 20mO Max
Applicable wires:
AWG #28~#24
Insulation O.D.: 1.5mm Max
Simular to JST PH 2.0
