Product specifications

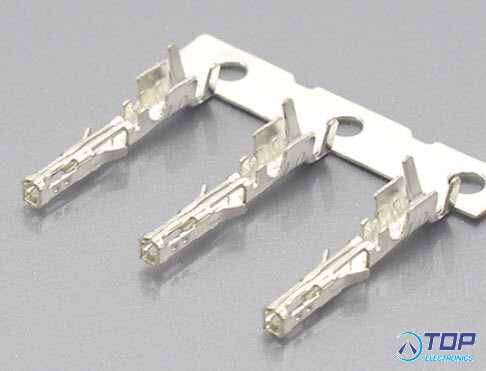

SWTB-T2001
Reel: 10K pcs
SPECIFICATIONS
1. Current rating: 5A AC, DC
2. Voltage rating: 250V AC,DC
3. Temperature range: -40°C ~ +105°C
4. Insulation resistance: 1000M O Min.
5. Withstanding voltage: 1500V AC/ minute.
6. Contact resistance: 10mO Max.
Material: Phosphor Bronze
Plating: Tin or gold plated over Nickel
Applicable wires: AWG #20~#24
Insulation O.D 1.30~1.80 mm
