Product specifications

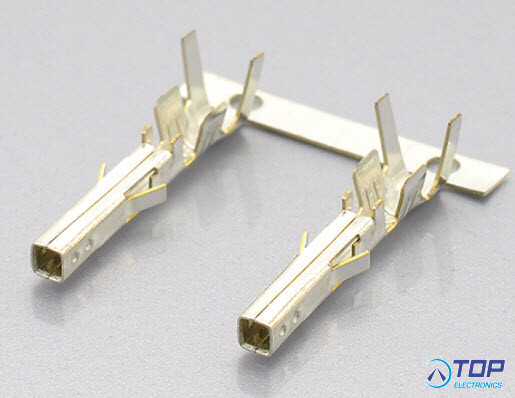

SWTB-T4200M-2
Reel: 10K pcs
AWG : 18~22
?SPECIFICATIONS
?Current rating: 7A AC, DC(AWG#20,2 Circuit)
?Voltage rating: 600V AC,DC
?Temperature range: -40°C ~ +105°C
?Insulation resistance: 1000M O Min.
?Withstanding voltage: 1500V AC/ minute.
?Contact resistance: 10mO Max.
Material: Brass or Phosphor Bronze
Plating: Tin plated over Nickel
Applicable wire: Conductor size: AWG#18~#22
Insulation O.D.: 1.10mm~1.80mm
Q'ty/reel: 10,000pc
