Product specifications

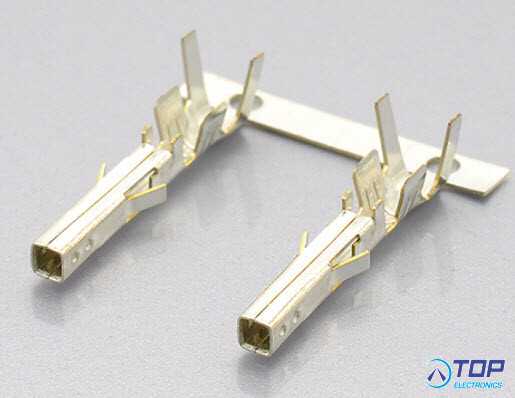

SWTB-T4200M-3
Reel: 4.5K pcs
AWG : 20~24
?SPECIFICATIONS
SPECIFICATIONS
1. Current rating: 9A AC, DC(AWG#16,2 Circuit)
2. Voltage rating:600V AC,DC
3. Temperature range: -40°C ~ +105°C
4. Insulation resistance: 1000M O/ min. 5. Withstanding voltage: 1500V AC/ minute. 6. Contact resistance: 10mO/ max. Material: Brass or phosphor bronze
Plating: Tin plated over Nickel
Applicable wire:Conductor size: AWG#16~#20
Insulation O.D.: 3.10mm Max.
Q'ty/reel: 4,500pcs
