Product specifications

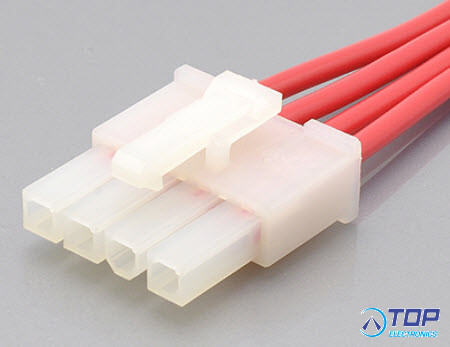

SWTB-H4200M1-02
Bag
?SPECIFICATIONS
1. Current rating: 9A(2P AWG#16) AC, DC
2. Voltage rating:600V AC,DC
3. Temperature range: -40°C ~ +105°C
4. Insulation resistance: 1000M O/ min.
5. Withstanding voltage: 1500V AC/ minute.
6. Contact resistance: 10mO/ max. Material:
Insulator: Nylon 66 UL94 V-2 or V-0
Contact: Brass
Plating: Tin plated over Nickel.
